San Ace

San Ace — SANYO DENKI

San Ace is the premium cooling fan brand of SANYO DENKI, a Japanese manufacturer renowned for high-performance thermal management and reliable cooling solutions. San Ace is particularly strong in high-airflow, high-static-pressure, long-life and energy-efficient fans, with products covering DC, AC, ACDC, blower and splash-proof series. Its advanced models are widely used in servers, data centers, telecom equipment, industrial control panels, factory automation, power supplies, EV chargers, PV inverters and semiconductor equipment. Notably, San Ace has developed industry-leading products such as the San Ace 92AD and San Ace 120WPA, combining high static pressure, airflow and long service life.

Results: 19
Applied Filters:
HVAC
Ventilation Equipment
Ventilation and Cooling
San Ace
Reset Apply

Brand

San Ace

Expected Life

30,000/60°C (53,000/40°C) h
40,000/60°C (70,000/40°C) h
40,000/60°C h
130,000/60°C (165,000/40°C) h

Sound Pressure Level (SPL)

67 dB(A)
68 dB(A)
69 dB(A)
70 dB(A)
71 dB(A)
72 dB(A)
75 dB(A)
76 dB(A)
81 dB(A)
82 dB(A)
85 dB(A)

Maximum Static Pressure

1,050 Pa
1,400 Pa
1,950 Pa
1,150 Pa
1,300 Pa
1,350 Pa
1,700 Pa
2,700 Pa
2,100 Pa
2,300 Pa
2,400 Pa
3,000 Pa
480 Pa
798 Pa
950 Pa

Operating Voltage Range

10.2–13.8 V
10.8–13.2 V
10.8–12.6 V
21.6–26.4 V
36–60 V
36–72 V
40.8–60.0 V
40.8–60 V

Rated Voltage

12 V
24 V
48 V

Maximum Airflow (m³/h)

1,842 m³/h
1,890 m³/h
43.2 m³/h
54.0 m³/h
54.6 m³/h
55.8 m³/h
63.0 m³/h
63.6 m³/h
225.0 m³/h
270.0 m³/h
339.0 m³/h
342.0 m³/h
420.0 m³/h
432.0 m³/h
498.0 m³/h
510.0 m³/h

Rated Input Power(W)

21.0 W
21.6 W
25.2 W
30.24 W
31.0 W
37.2 W
39.6 W
57.6 W
63.6 W
67 W
86.4 W
96 W
120 W
135 W
144 W
384 W
600 W

Dimensions (mm)

36 × 36 × 28 mm
38 × 38 × 28 mm
40 × 40 × 56 mm
40 × 40 × 28 mm
80 × 80 × 80 mm
120 × 120 × 38 mm
120 × 120 × 76 mm
φ200 × 70 mm

Rated Speed

6,200 RPM
7,800 RPM
8,000 RPM
9,600 RPM
10,000 RPM
11,500 RPM
12,000 RPM
15,400 RPM
18,500 RPM
22,500 RPM
29,500 RPM
32,500 RPM
36,200 RPM
38,000 RPM
38,500 RPM

Rated Current

1.40 A
1.75 A
1.80 A
2.00 A
2.10 A
2.40 A
2.50 A
2.52 A
2.60 A
2.80 A
3.10 A
3.30 A
5.30 A
7.20 A
8.0 A
10.0 A
12.0 A
12.5 A

Product

Image Brand Title Rated Current Rated Speed Dimensions (mm) Rated Input Power(W) Maximum Airflow (m³/h) Rated Voltage Operating Voltage Range Maximum Static Pressure Sound Pressure Level (SPL) Expected Life

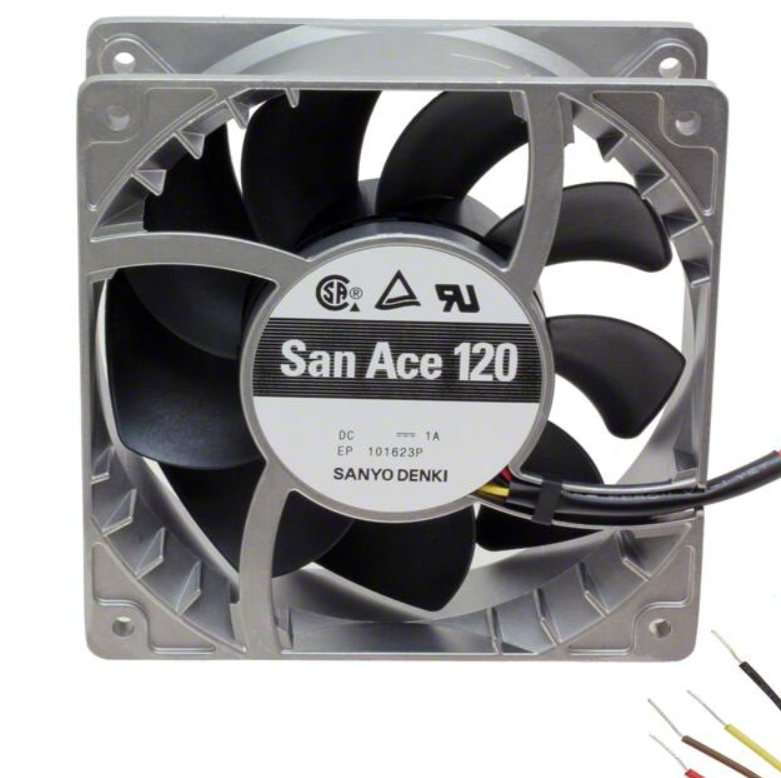

San Ace 9HV1248P1H001San Ace 1.40 A 10,000 RPM 120 × 120 × 38 mm 67 W 432.0 m³/h 48 V 36–60 V 1,050 Pa 72 dB(A) 40,000/60°C (70,000/40°C) h

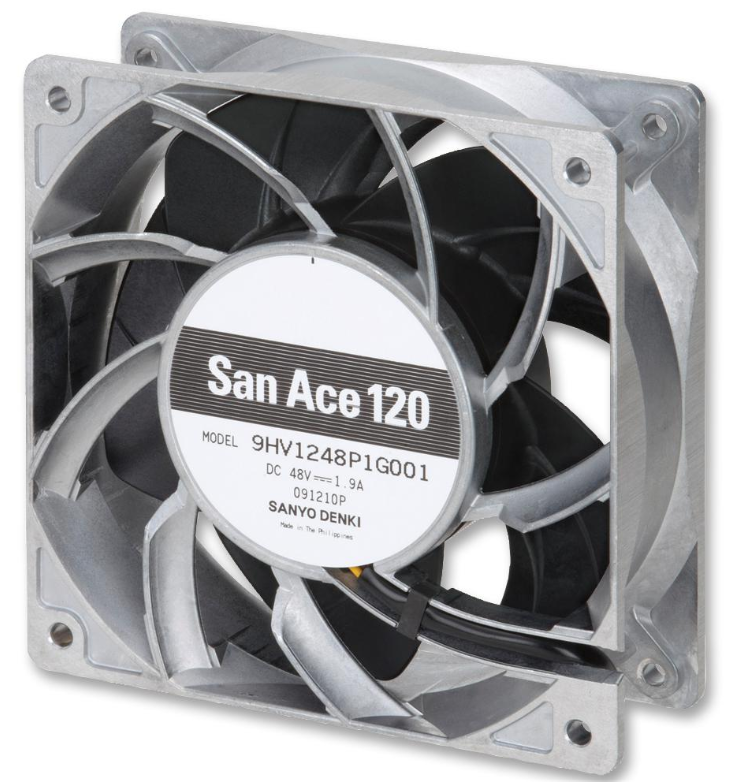

San Ace 9HV1248P1G001San Ace 2.00 A 11,500 RPM 120 × 120 × 38 mm 96 W 498.0 m³/h 48 V 36–60 V 1,300 Pa 75 dB(A) 40,000/60°C (70,000/40°C) h

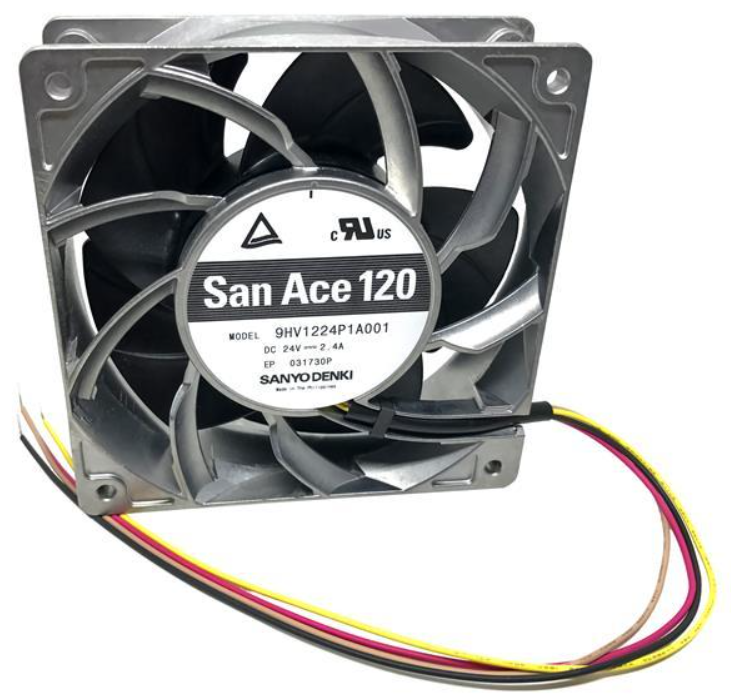

San Ace 9HV1224P1A001San Ace 2.40 A 9,600 RPM 120 × 120 × 38 mm 57.6 W 420.0 m³/h 24 V 21.6–26.4 V 950 Pa 71 dB(A) 40,000/60°C (70,000/40°C) h

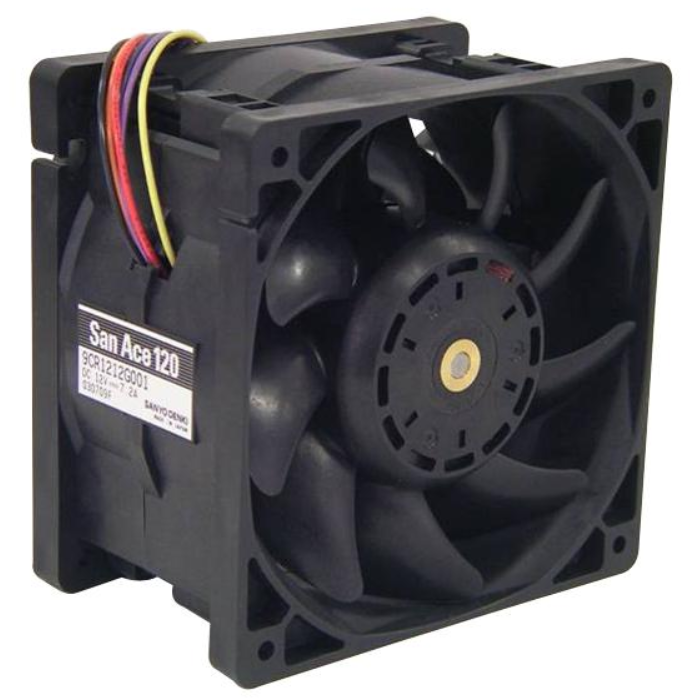

San Ace 9CR1212P0G03San Ace 7.20 A 6,200 RPM 120 × 120 × 76 mm 86.4 W 510.0 m³/h 12 V 10.8–13.2 V 480 Pa 70 dB(A) 40,000/60°C (70,000/40°C) h
San Ace 9CRA0812P8H001San Ace 3.30 A 10,000 RPM 80 × 80 × 80 mm 39.6 W 225.0 m³/h 12 V 10.8–13.2 V 798 Pa 72 dB(A) 40,000/60°C (70,000/40°C) h

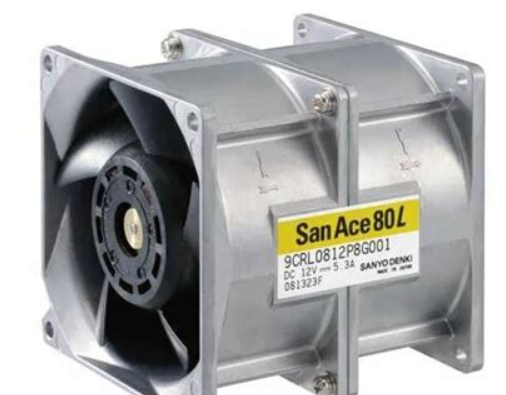

San Ace 9CRL0812P8G001San Ace 5.30 A 12,000 RPM 80 × 80 × 80 mm 63.6 W 270.0 m³/h 12 V 10.8–13.2 V 1,150 Pa 76 dB(A) 130,000/60°C (165,000/40°C) h
San Ace 9CRH0848P8G001San Ace 2.50 A 15,400 RPM 80 × 80 × 80 mm 120 W 342.0 m³/h 48 V 40.8–60.0 V 1,950 Pa 82 dB(A) 40,000/60°C (70,000/40°C) h

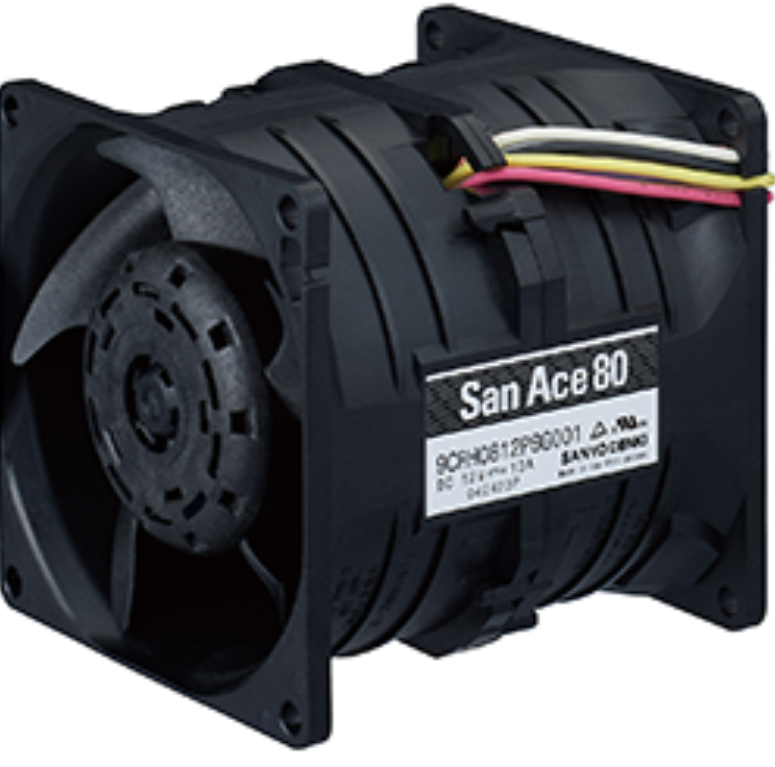

San Ace 9CRH0812P8G001San Ace 10.0 A 15,400 RPM 80 × 80 × 80 mm 120 W 342.0 m³/h 12 V 10.8–12.6 V 1,950 Pa 82 dB(A) 40,000/60°C (70,000/40°C) h
San Ace 9CRHA0848P8J001San Ace 2.80 A 18,500 RPM 80 × 80 × 80 mm 135 W 339.0 m³/h 48 V 40.8–60.0 V 2,700 Pa 85 dB(A) 40,000/60°C (70,000/40°C) h

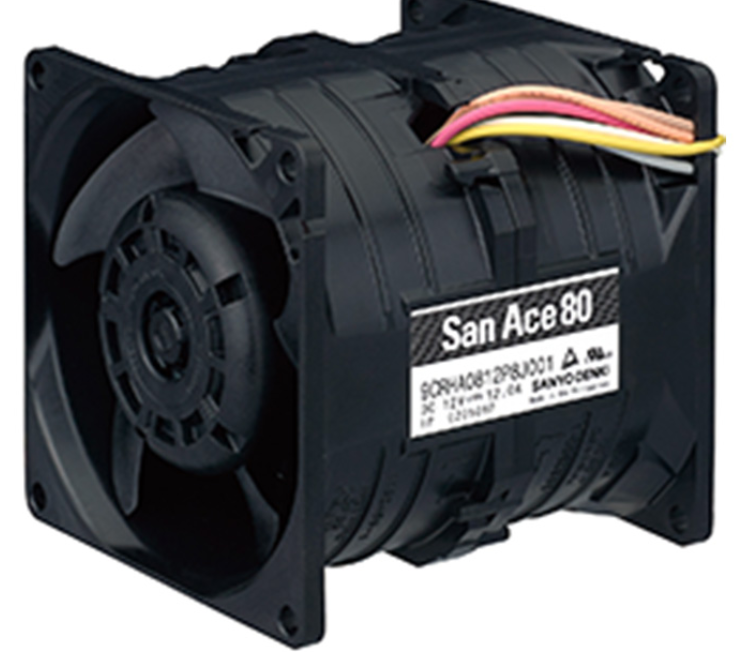

San Ace 9CRHA0812P8J001San Ace 12.0 A 18,500 RPM 80 × 80 × 80 mm 144 W 339.0 m³/h 12 V 10.8–12.6 V 2,700 Pa 85 dB(A) 40,000/60°C (70,000/40°C) h
San Ace 9CRHA0848P8K001San Ace 2.80 A 18,500 RPM 80 × 80 × 80 mm 135 W 339.0 m³/h 48 V 40.8–60 V 3,000 Pa 85 dB(A) 40,000/60°C h

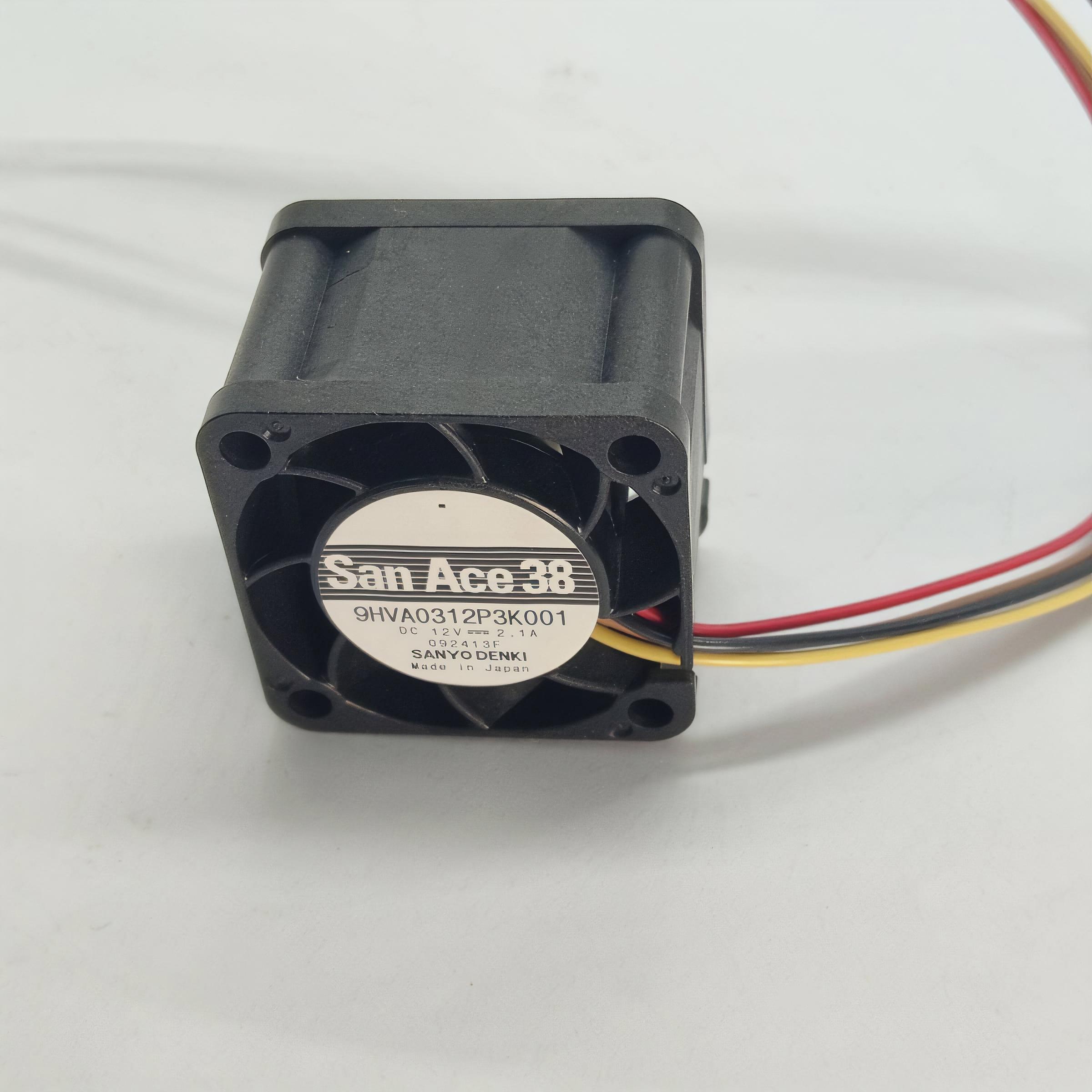

San Ace 9HVA0312P3K001San Ace 2.10 A 38,500 RPM 38 × 38 × 28 mm 25.2 W 54.6 m³/h 12 V 10.8–13.2 V 2,100 Pa 69 dB(A) 30,000/60°C (53,000/40°C) h

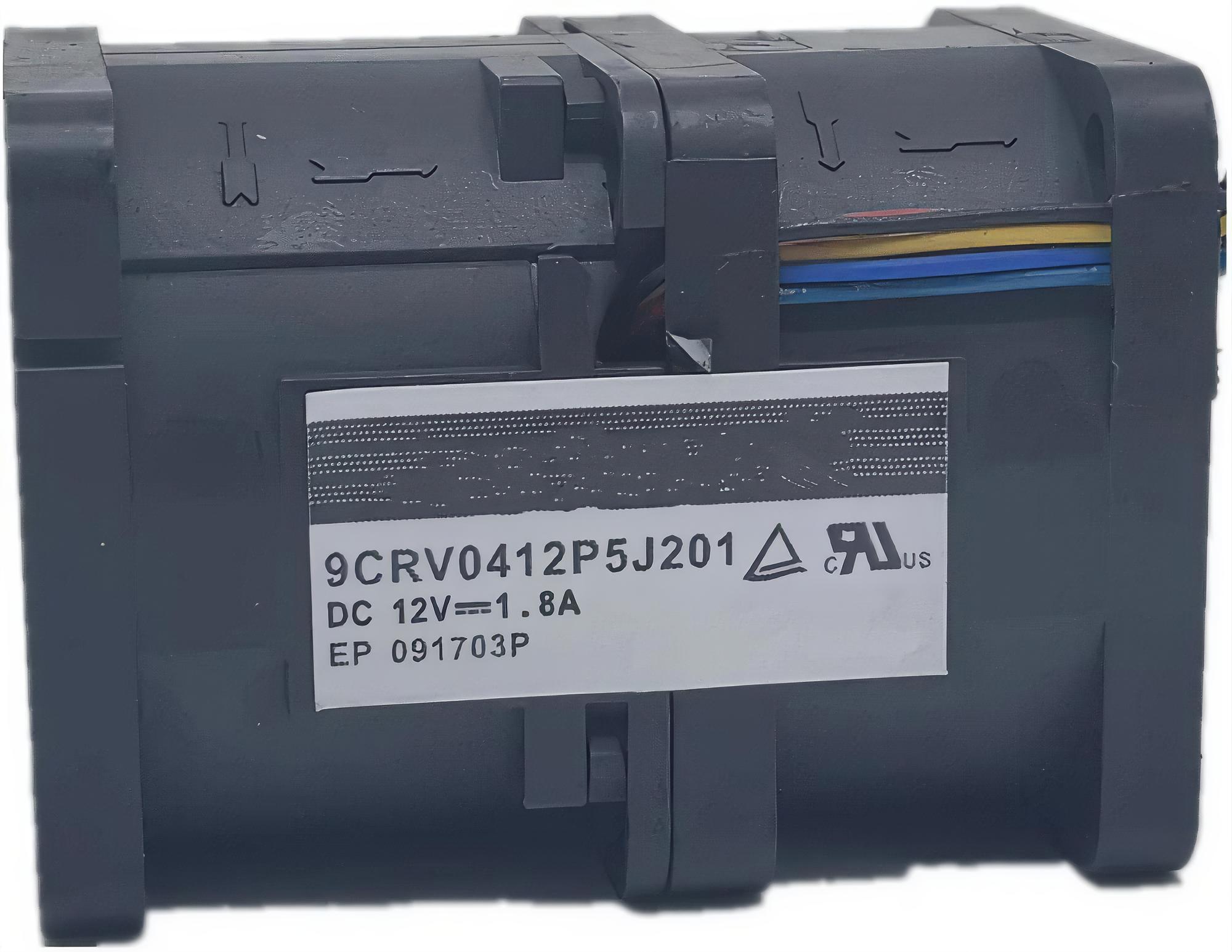

San Ace 9CRV0412P5J201San Ace 1.80 A 22,500 RPM 40 × 40 × 56 mm 21.6 W 54.0 m³/h 12 V 10.8–13.2 V 1,050 Pa 68 dB(A) 40,000/60°C (70,000/40°C) h
San Ace 9CRH0412P5J001San Ace 2.52 A 29,500 RPM 40 × 40 × 56 mm 30.24 W 55.8 m³/h 12 V 10.8–12.6 V 1,700 Pa 70 dB(A) 30,000/60°C (53,000/40°C) h

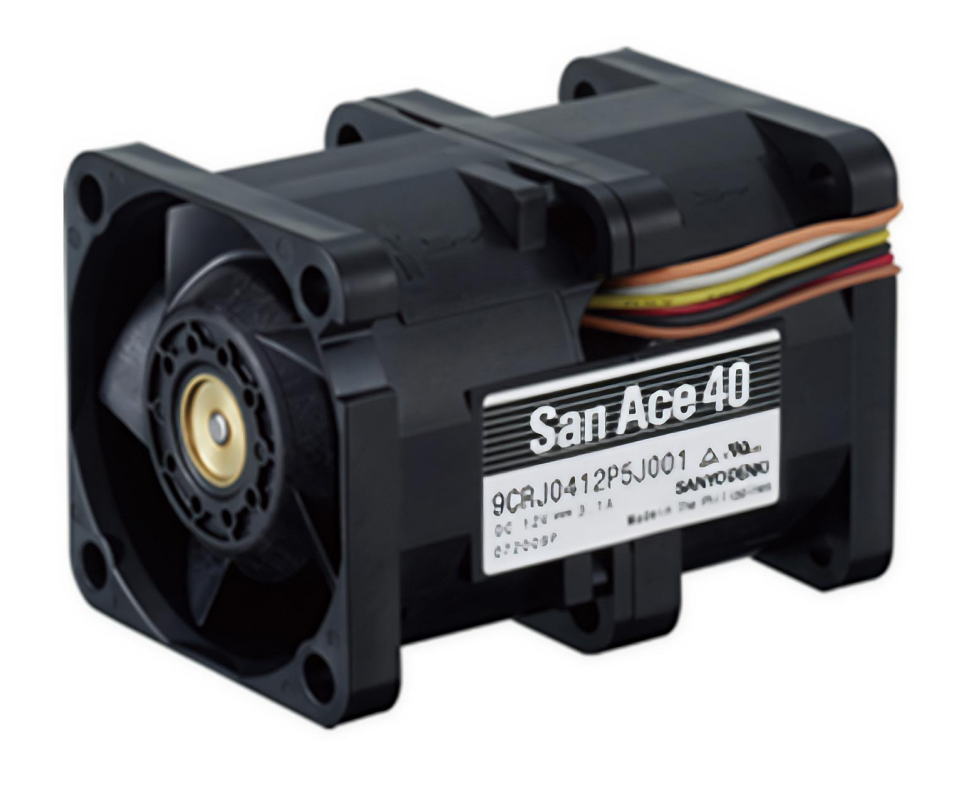

San Ace 9CRJ0412P5J001San Ace 3.10 A 36,200 RPM 40 × 40 × 56 mm 37.2 W 63.6 m³/h 12 V 10.8–12.6 V 2,400 Pa 72 dB(A) 30,000/60°C (53,000/40°C) h
San Ace 9HVA0412P3J001San Ace 2.60 A 38,000 RPM 40 × 40 × 28 mm 31.0 W 63.0 m³/h 12 V 10.2–13.8 V 2,300 Pa 71 dB(A) 30,000/60°C (53,000/40°C) h
San Ace 9HV3612P3K001San Ace 1.75 A 32,500 RPM 36 × 36 × 28 mm 21.0 W 43.2 m³/h 12 V 10.8–13.2 V 1,400 Pa 67 dB(A) 30,000/60°C (53,000/40°C) h
San Ace 9GV2048P0G201San Ace 12.5 A 8,000 RPM φ200 × 70 mm 600 W 1,890 m³/h 48 V 36–72 V 1,400 Pa 81 dB(A) 40,000/60°C (70,000/40°C) h
San Ace 9GA2048P0G001San Ace 8.0 A 7,800 RPM φ200 × 70 mm 384 W 1,842 m³/h 48 V 36–60 V 1,350 Pa 81 dB(A) 40,000/60°C (70,000/40°C) h
